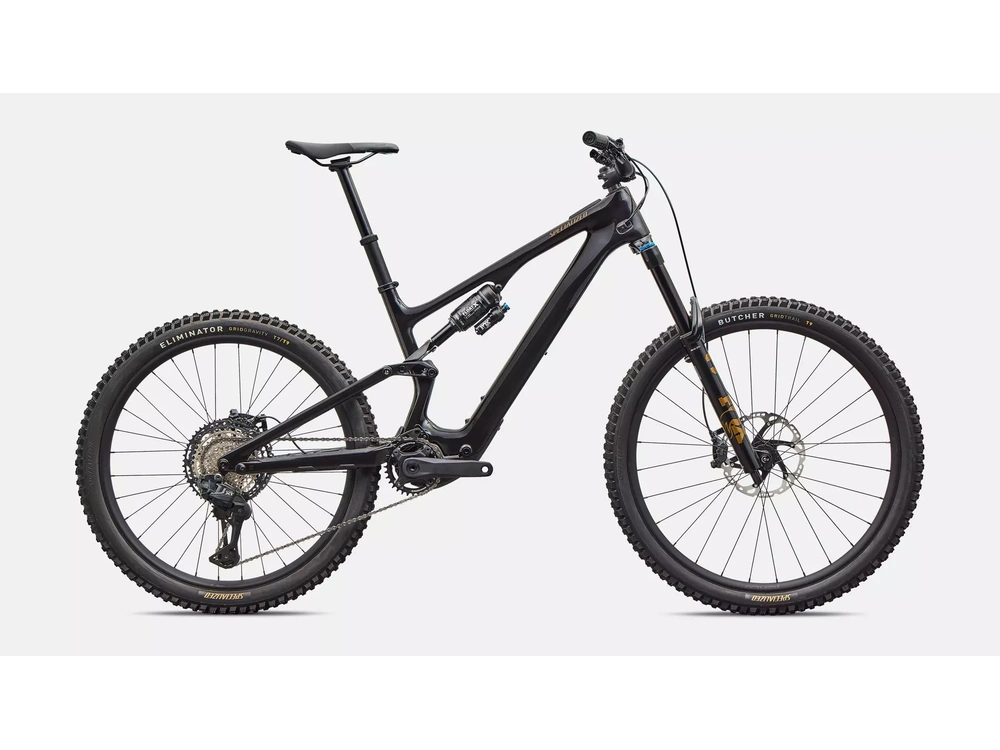

Specialized LEVO SL EXPERT CARBON DI2 S3

Technical Specifications   E-Bike

Motor

Specialized SL 1.2 Custom Rx Trail Tuned Motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Charger

Custom charger, 48V System w/ SL system charger plug

Frameset

Frame

Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever , LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Performance Elite 210x52.5mm

Fork

FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset

Brakes

Front Brake

Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor

Rear Brake

Shimano Deore XT brake, 4 piston, Metal pad w/fin, 203mm rotor

Drivetrain

Shift Levers

Shimano XT Di2

Rear Derailleur

Shimano XT Di2, 12-speed

Cassette

Shimano XT M8200, 12-speed, 10-51

Chain

Shimano XT M8100, 12-speed w/ quick link

Crankset

SRAM Alloy Crankset, 165mm, Dub interface

Chainrings

Race Face alloy chainring, 104 BCD, 32T

Wheels & Tires

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4

Front Wheel

Traverse Alloy 370, 29, 28H, alloy rim, 30mm inner width, 15x110mm, 6 bolt

Rear Tire

Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, TLR, 27.5X2.4

Rear Wheel

Traverse Alloy 370, 27.5, 32H, alloy rim, 30mm inner width, DT Swiss 370 rear hub, 12x148mm, 6 bolt

Inner Tubes

Standard, Presta Valve

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Grips

Deity Lockjaw Grips

Saddle

Specialized Bridge Comp with Mimic

SeatPost

PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 175mm, S4-S5: 200mm, S6: 225mm

Accessories

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

Product Details

Product ID

221351

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

Weight

18.92 kg (41 lb, 11.4 oz)

Weight Size

S4
